DoorKeeper Settings

DoorKeeper™ is an AddIn or App that adds functionality to Bentley Systems MicroStation^® CONNECT. It's a tool for architects, designers and planners.

Settings Dialog

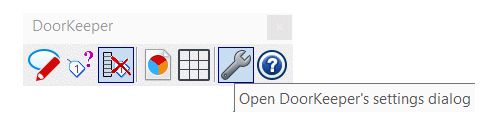

The command key-in DOOR DIALOG SETTINGS pops DoorKeeper's Settings dialog …

Explanation of settings …

Combo Boxes

In the settings dialog, these combo boxes set the default value of one of DoorKeeper's properties.

Door Category

Select one of the categories. They are defined by an eponymous Pick List

Door Class

Select one of the door classes. They are defined by an eponymous Pick List

Door Size

Select one of the sizes. They are defined by an eponymous Pick List

Door Type

Select one of the types. They are defined by an eponymous Pick List

Manufacturer

Select one of the manufacturers. They are defined by an eponymous Pick List

Material

select one of the materials. They are defined by an eponymous Pick List

The Accuracy combo box defines the formatting of certain numeric values.

Accuracy

Controls the precision of decimal numbers, such as XY coordinates shown in FlexiTable.

Toggle Buttons

Auto Increment

Causes DoorKeeper to increment your ID. For example, after you place a label showing ID Door 101, the next door you label will show ID Door 102

Pick Lists

Pick Lists are part of MicroStation. DoorKeeper creates the above Pick Lists when it starts. DoorKeeper doesn't overwrite a Pick List of the same name that already exists.

You can subsequently modify the Pick Lists using MicroStation or other tools.

Don't change the name of any Pick List, because DoorKeeper won't be able to find it.
