DoorKeeper: Alignment Tool

When you initially create annotations manually using DoorKeeper's labelling tool, each label is placed where you want. Subsequently, you may find that the labels appear untidy. DoorKeeper's alignment tool provides a simple way to move labels to a consistent position.

When you key-in command DOOR ALIGN DoorKeeper moves each label so that its origin lies left, right, top, bottom or in the centre of its host shape. At the same time the label's text justification is modified to match.

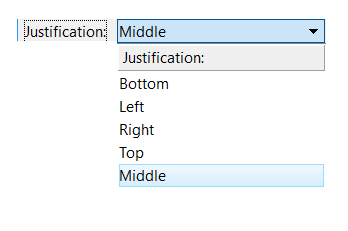

The position depends on DoorKeeper's justification setting, which you can find in the dialogs for those commands where justification is appropriate …

Here are examples of the result of invoking each AREA ALIGN command …

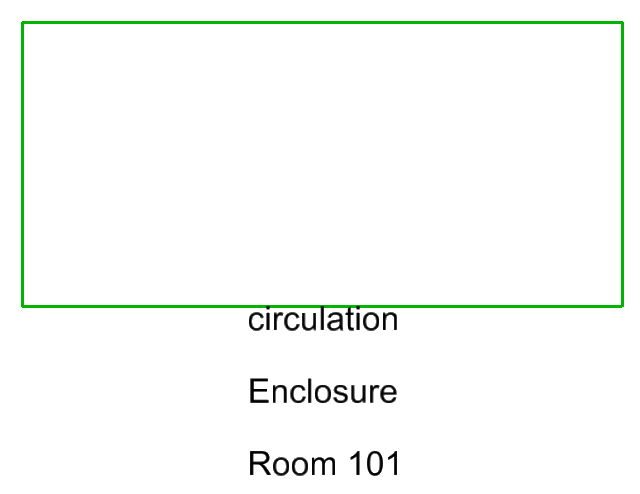

Bottom Alignment

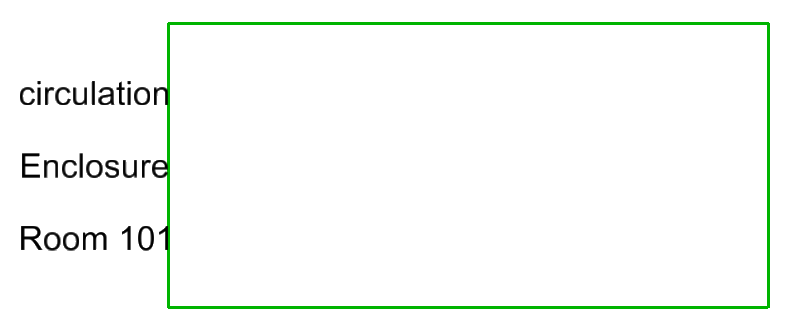

Left Alignment

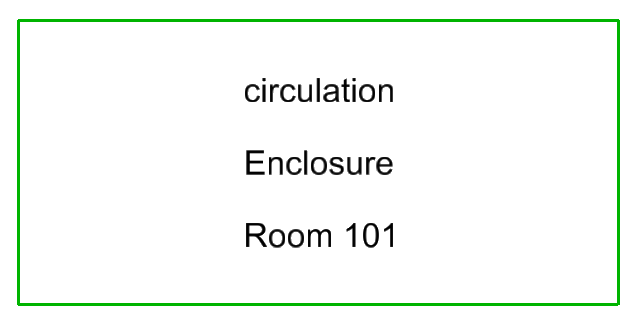

Middle Alignment

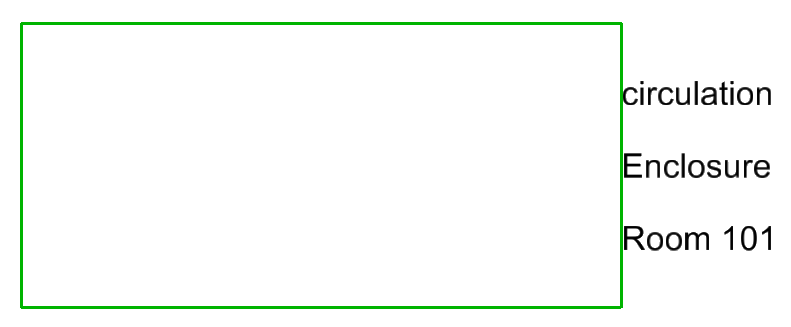

Right Alignment

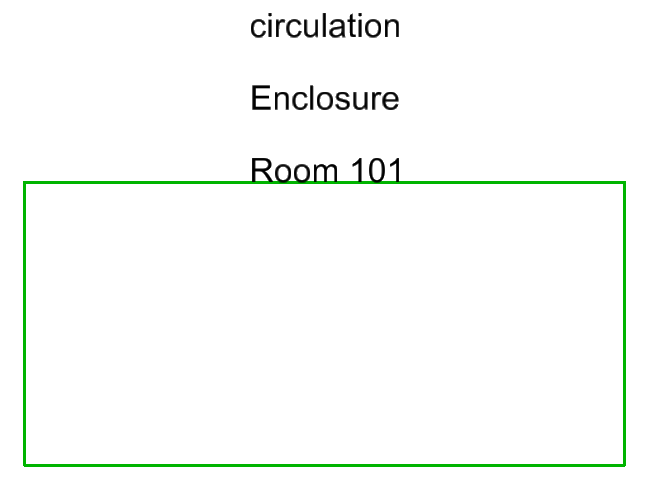

Top Alignment
