Simple Element Pick and Place

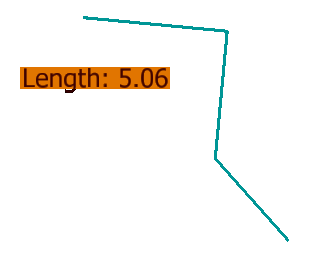

The Element Pick and Place tool is a simple tool that inherits from the MicroStation Python DgnElementSetTool. When you pick an element it creates a text element in method _OnElementModify. The label displays the length of the line you picked.

ElementPickAndPlace Class

class ElementPickAndPlace(DgnElementSetTool):
    def __init__(self, toolId: int):
        """
        Initialize the ElementModifier.

        param toolId: The ID of the tool.
        """
        DgnElementSetTool.__init__(self, toolId) # C++ base's __init__ must be called.
        self.m_isDynamics = False
        self.m_ev = None
        self.m_self = self # Keep self-referenced. This variable is used by the base class DgnElementSetTool.

Method _OnPostLocate

First we must verify that the chosen element is suitable for modification. It should be a linear DGN element such as a line or line-string. The right place to perform that check is in method _OnPostLocate …

def _OnPostLocate(self, path: HitPath, cant_accept_reason: str)->bool:
	"""
	Handle post-locate event to determine if the element can be accepted for modification.

	:param path: The path of the located element.
	:param cant_accept_reason: The reason why the element cannot be accepted.
	:returns: True if the element can be accepted, False otherwise.
	"""
	if not DgnElementSetTool._OnPostLocate(self, path, cant_accept_reason):
		return False

	eh = ElementHandle(path.GetHeadElem(), path.GetRoot())
	curve = ICurvePathQuery.ElementToCurveVector(eh)

	# Accept elements that are open paths with one or more linear segments (ex. line or linestring).
	if curve==None or (not curve.IsOpenPath()):
		return False

	primitive_type = curve.HasSingleCurvePrimitive()
	if primitive_type == ICurvePrimitive.eCURVE_PRIMITIVE_TYPE_Line or primitive_type == ICurvePrimitive.eCURVE_PRIMITIVE_TYPE_LineString:
		return True

	return False

Method _OnElementModify

The purpose of Element Picker is simple: when you pick a linear element the code formats a string using the length of the line. Then it creates a new DGN text element and places it in the active model …

    def _OnElementModify(self, eeh: EditElementHandle)->BentleyStatus:
        """
        Using the given element, create some text annotation.

        :param eeh: The element that supplies information.
        :returns: The status of the modification.
        """
        # NOTE: Since we've already validated the element in OnPostLocate and don't support groups/selection sets we don't have to check it again here.
        curve = ICurvePathQuery.ElementToCurveVector(eeh)
        length = curve.FastLength()

        locate_point = DPoint3d()
        self._GetAnchorPoint(locate_point)

        annotator = CreateTextElement(eeh.GetModelRef())
        uors = get_uors_per_master(eeh.GetModelRef())
        annotator.place_label(locate_point, length / uors)

Class CreateTextElement

Class CreateTextElement gets the active text style (DgnTextStyle) from the DGN file. It creates an empty TextBlock using that style. Method place_label formats a string with the passed length and appends it to the TextBlock. Finally, TextHandlerBase.CreateElement() creates a text element which is added to the DGN model.

Python programmers usually work with units-of-resolution (as with MDL and the C++ MicroStationAPI). Use the UORs obtained from the active model to scale the measured length of the line to master units before creating the label.

class CreateTextElement():
    def __init__(self, dgn_model_ref: DgnModelRef)->bool:
        self._dgn_model_ref = dgn_model_ref
        self._text_style = DgnTextStyle.GetSettings(dgn_model_ref.GetDgnFile())
        self._text_block = self.create_text_block(self._text_style, self._dgn_model_ref)

    def create_text_block (self, text_style: DgnTextStyle, dgn_model_ref: DgnModelRef)->TextBlock:
        '''
        Create a TextBlock using the specified TextStyle.
        '''
        text_block = TextBlock(text_style, dgn_model_ref.GetDgnModel())
        start_caret = text_block.CreateStartCaret()
        end_caret = text_block.CreateEndCaret()
        return text_block

    def place_label(self, origin: DPoint3d, length: float)->None:
        '''
        Append some text to a TextBlock and create a new text element placed at the given origin.
        '''
        self._text_block.AppendText(f"Length: {length:.2f}") # Format specifier :.2f for two decimal places
        self._text_block.SetUserOrigin(origin)
        eeh = EditElementHandle()
        status = TextHandlerBase.CreateElement(eeh, None, self._text_block)
        print(f"TextHandlerBase.CreateElement status {status}")
        result = eeh.AddToModel()
        msg = str()
        if eTEXTBLOCK_TO_ELEMENT_RESULT_Success == result:
            msg = "Text block successfully added."
            MessageCenter.ShowInfoMessage(msg, msg, False)
        else:
            msg = "Text block not added."
            MessageCenter.ShowErrorMessage(msg, msg, False)
        print(msg)
