BoM: Alignment Tool

The comments here apply to text-only annotations, when you use BoM to create a text node element. If you use annotation cells for labels, you control alignment in the design of your cell.

When you initially create text annotations manually using BoM's labelling tool, each label is placed where you want. Subsequently, you may find that the labels appear untidy. BoM's alignment tool provides a simple way to move labels to a consistent position.

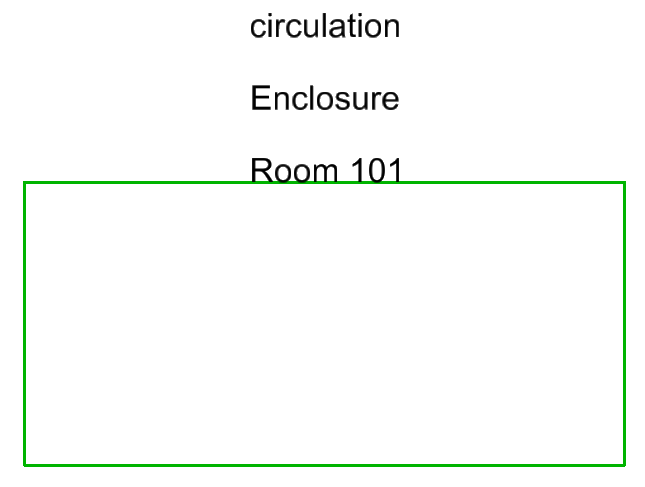

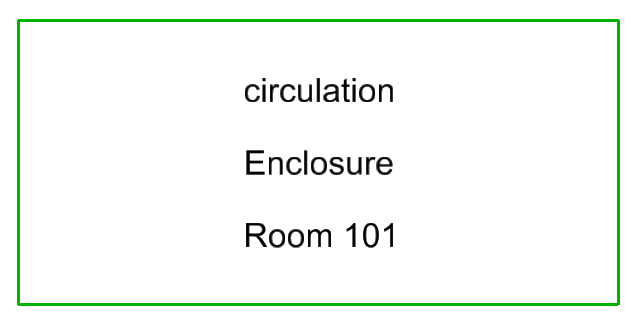

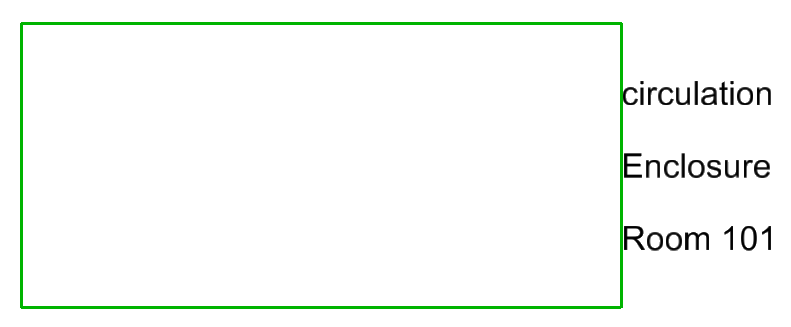

When you key-in command BOM ALIGN BoM moves each label so that its origin lies left, right, top, bottom or in the centre of its host element. At the same time the label's text justification is modified to match.

The position depends on BoM's justification setting, which you can find in the dialogs for those commands where justification is appropriate …
