PipeTagger™

PipeTagger: a MicroStation Application

PipeTagger™ is an AddIn or App that adds functionality to Bentley Systems MicroStation^® CONNECT. It's a tool for architects, engineers, planners and technicians.

PipeTagger provides its own set of key-in commands. Once PipeTagger is loaded, those commands can be used to start actions by PipeTagger.

The MicroStation key-in to start PipeTagger is
mdl load PipeTagger

When PipeTagger is loaded, you will see its tool box … If you don't see that toolbox, consult your MicroStation administrator. You can open the toolbox using MicroStation key-in CUSTOMIZE OPEN TOOLBOX PipeTagger …

PipeTagger Key-In Commands

There are several types of commands provided by PipeTagger …

Actions, for example to create a label
Reports & Tables provide short cuts to MicroStation commands
Search or Query to find user-defined properties and values
Settings, for example to set the decimal accuracy of a label
File
Help

Actions

Interactive Action Commands
Command	Effect	Comment
PIPE TAG SINGLE	Tag a single line	Attaches Item Types data and adds a text label
PIPE TAG REMOVE	Removes Item Types data and deletes label
PIPE TAG QUERY	Query a pipe for its data	Read but don't modify PipeTagger data
PIPE TAG PROPERTY property name, new value	Modify only the specified value	Works with Fences and Selection Sets

Bulk Action Commands
Command	Effect	Comment
PIPE TAG MULTI	Tag multiple lines	Pops the Tag Multiple dialog. Attaches Item Types and labels to multiple lines on a specified level
PIPE ALIGN	Move each label relative to its host	Position depends on the justification setting

See the Advanced PipeTagger page for more information about Purpose, PipeType and tagging multiple lines.

Search and Query

Search and Query Commands
Command	Effect	Comment
PIPE QUERY CHOOSE	Pops the Query dialog	Technology Preview
PIPE SEARCH	Pops the Search dialog	Technology Preview

See the PipeTagger Search page for more information about search and query tools.

Reports, Tables & Named Groups

Reports, Tables & Named Groups
Command	Effect	Comment
PIPE REPORT CREATE	Start MicroStation's Report tool	Uses a pre-defined report template
PIPE TABLE CREATE	Start MicroStation's Table tool
PIPE NAMEDGROUP DIALOG property name	Pops the Annotator Group Properties dialog	Add DGN elements having the specified property to a Named Group

Settings

Settings Dialog
Command	Effect	Comment
PIPE DIALOG SETTINGS	Pop the PipeTagger Settings dialog

Settings Commands
Command	Effect	Comment
PIPE SET TEXTSTYLE	Set the Text Style used to create labels
PIPE SET JUSTIFICATION	Set the justification used to create labels
PIPE SET ACCURACY	Set the decimal accuracy when composing a pipe label	Default is two decimal places
PIPE SET FLAG PROPERTY	Include the named property in a label	Default is on
PIPE SET FLAG AUTOLABEL	Automatically label each DGN element	Default is on
PIPE SET FLAG INCREMENT	Auto-increment the ID Item	Default is on
PIPE SET DELTA	Set the ID increment delta (Δ)	If Δ equals 2, for example, then Pipe 101 → Pipe 103. Default is Δ = 1
PIPE SET LEVEL	Set the level name used to create labels

Help

Help Commands
Command	Effect	Comment

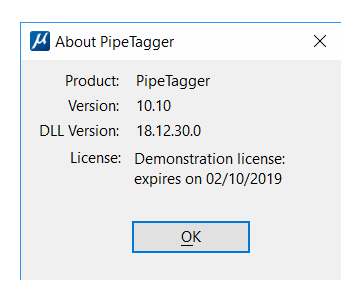

PIPE HELP ABOUT	Pops a dialog with brief information about PipeTagger

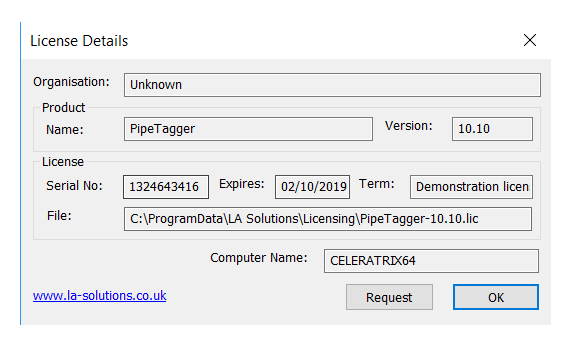

PIPE HELP LICENSE	Writes license information to the Message Center
PIPE HELP CFGVARS	Shows the configuration variables used by PipeTagger
PIPE HELP DOCUMENT	Shows PipeTagger help
PIPE HELP PROPLIST	Shows a list of property names used by this app's Item Type
PIPE HELP PROPPICKLIST	Shows a list of values, if any, that can be used by the named property
