Label Lines with VBA

Questions similar to these appear in the Be Communities MicroStation Programming Forum.

Q How do I label a contour with its height?

A This article describes a MicroStation VBA project that …

• Measures one or more lines or shapes that represent contours
• Creates a text label that shows the height (elevation) of the line or shape

The macro lets a user either pick a single line or shape to be labelled, or works with the contents of a fence or selection set to label multiple lines or shapes.

Note that a label created using this VBA tool is static. The label doesn't update automatically if you modify a line or shape — the label stays the same. To update a label that was created using this tool, you must delete the label then run the tool again.

Dynamic Labels

If you want to create a label that updates automatically when a line or shape is modified, then use a Text Field. Unfortunately, VBA doesn't support (as of Update 17.1) text fields. Alternatively, use one of our TagWorks products.

Example Labels

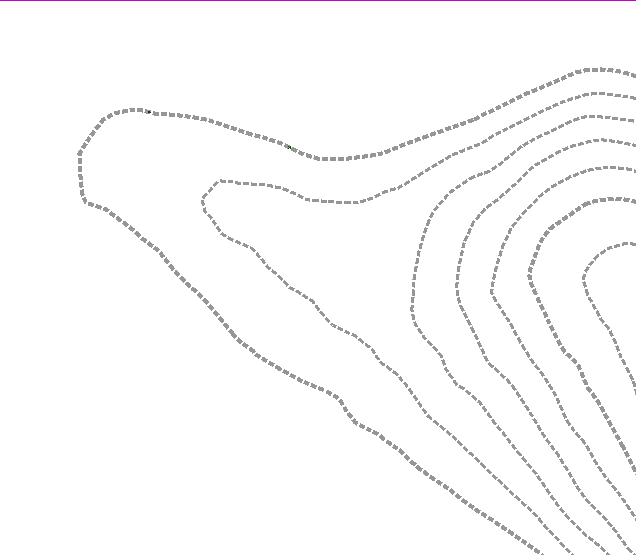

Here's a set of contours created in a MicroStation DGN model using the built-in tools. The contours are a mix of lines, line-strings and shape elements …

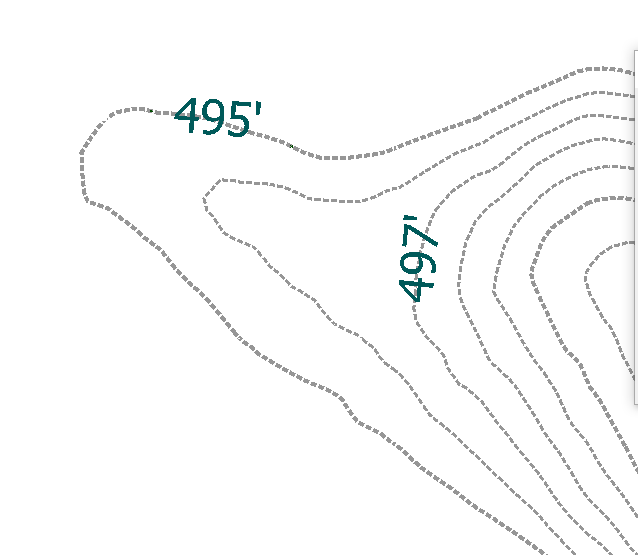

Here's the same set of contours after labelling a couple with the VBA macro described here …

Interactive Tool

Decide how you want to align the label relative to the element or view. Choose an option from the Rotation ComboBox …

• Unrotated: the label is created parallel to the X-axis
• View: the label is created parallel to the X-axis in the view where you place the data point
• Element: the label is created parallel to the element segment nearest to the pick point

The tool works interactively like this …

1. Prompt user to pick a contour (LineElement, LineStringElement or ShapeElement)
2. Create a label for the element by formatting its height (Z-value of the first point) as a human-friendly string
3. If Snap Label to Line is checked …
   • Create the label automatically as a new TextElement
4. Otherwise
   • Prompt user to place the label as a new TextElement

If MatchElement is selected, then the new label is rotated to match the nearest line segment. If View is selected, then the new label is rotated to match the active view. Otherwise, the label is created with no rotation.

Batch Tool

When a MicroStation selection set or fence is active the macro works in batch mode. It obtains an ElementEnumerator from the selection set or fence, then works through that collection, labelling each LineElement, LineStringElement or ShapeElement. The label is created at the mid-point of the LineElement or nearest segment of a LineStringElement or ShapeElement.

• Unrotated: the label is created parallel to the X-axis
• View: the label is created parallel to the X-axis in the view where you place the data point
• Element: the label is created parallel to the element segment nearest to its centre point

When working in batch mode, there is no opportunity for the operator to place the label manually. The Snap Label to Line check box is checked but disabled.

TextStyle

This tool creates a text element and snaps it to the chosen contour. What you see depends on the text style. If you want to obscure the contour line beneath the text, then choose a text style having an opaque background.

Notes about MicroStation

Reports

MicroStation Reports let you harvest DGN data. For example, you can report line lengths — here's step-by-step guide to creating a Linear Report. You can export a Report to a CSV file, which you can open with Microsoft Excel …

Text Fields

A Text Field can display DGN element and other properties. The advantage of a Text Field over plain text is that a Text Field updates automatically when its related element is changed. In contrast, a label created using a plain old TextElement, such as those created by this Label Line tool, does not update automatically.

Download the Label Contours ZIP archive, and unpack it to a suitable location such as \Workspace\Standards\macros. Start the macro using the key-in …

vba run [LabelContours]modMain.Main
