Q You are writing code that must show a numerical fraction, and want to use any font to display that text. You are looking for answers to questions like these …

• How do I create text that displays a (stacked) fraction using VBA?
• I know how to create a fraction using a MicroStation RSC font, but how can I create a fraction using a TrueType font?

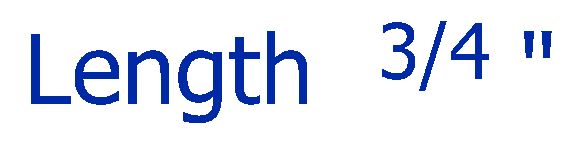

A We've written a VBA project that creates fractional text such as ¾. You can create a fraction using any font, whether TrueType or a legacy RSC font. Another term for that type of display is a stacked fraction.

MicroStation and Fractional Text

Engineers, scientists and draftspeople using the Imperial system of measurement often want to express a number as a fraction, such as ¹⁵⁄₁₆. Some fonts provide a limited number of common fractions such as ¾ and ⅔. However, engineering models are often dimensioned in sixteenths, thirty-seconds or sixty-fourths, which are not available in most fonts.

Bentley Systems solved that problem decades ago by provided RSC fonts (resource fonts) for MicroStation. For example, the ENGINEERING font includes glyphs for fractions up to ⁶³⁄₆₄. By that we mean that a single character includes everything you see in that fraction.

RSC Fonts

RSC fonts are great in MicroStation and let us dimension a DGN element with a fractional number. Assuming you know the character code of the glyph in the RSC font, you can create it in VBA using the Chr$() function. Unfortunately, other programs (e.g. Microsoft Office or Adobe PDF), don't recognise those RSC fonts. Consequently, you can't ask MicroStation to create accurately a PDF that displays a DGN model that includes fractions. Likewise, you can't copy-and-paste a fractional dimension into your Microsoft Word document.

TrueType Fonts

Most desktop office applications recognise fonts that follow the TrueType standards. MicroStation is also capable of using TrueType fonts. TrueType fonts were introduced with MicroStation V8 in 2001.

If you use TrueType fonts in MicroStation, text can be rendered accurately in other applications such as Microsoft Office and in PDF files. However, TrueType fonts typically provide only a small number of fractional glyphs. That leaves us with the question: How to render a fraction using any font?

MicroStation Text Editor

How can we create a fraction using any font? The answer lies in MicroStation's text composition capabilities. MicroStation's text dialog provide many ways to manipulate text …

The text editor's right-click pop-up menu contains items that are used to copy, move, delete, and select text, and insert fields derived from properties. The Insert Stacked Fraction menu item pops the Insert Stacked Fraction dialog …

That dialog enables us to compose a fraction using the current font, whether that be TrueType or a RSC font. We are not restricted to the limited number of fractions embedded in a RSC font, but are free to write ridiculous fractions such as ¹³¹⁄₄₃₇.

VBA Project

This article shows how to write code in VBA that mimics the MicroStation text editor's fraction composition tool. There is no API for MicroStation's text editor, so we must improvise.

If you're not interested in the code, you can skip the following explanation and download the VBA project. The project is freeware and includes the source code.

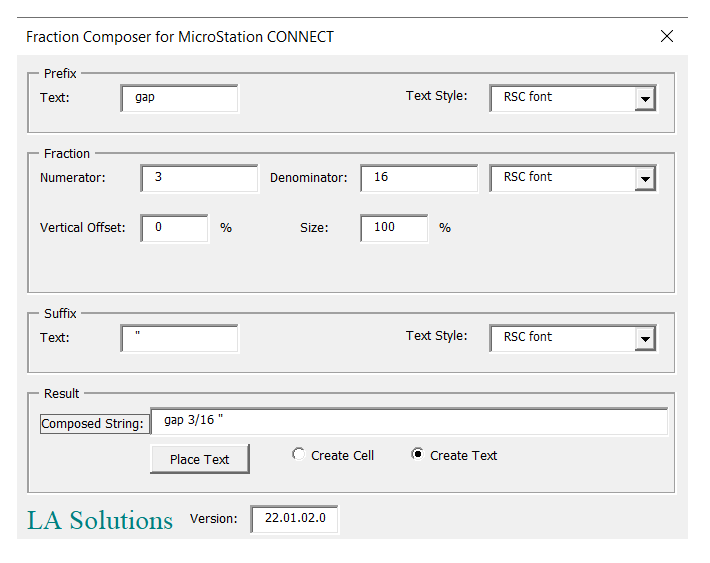

The FractionText VBA project shows the dialog (VBA UserForm) when you start the macro …

vba run FractionText

The dialog contains a text box for prefix and suffix strings. They frame the fraction string that is composed from the user interface in the Fraction pane. The composed string is displayed in the Result text box.

Fraction Composition

The Fraction pane works like MicroStation's text editor fraction tool. Specify a numerator and denominator, which together make the fraction. In the screenshot, we've specified 3 as the numerator, and 16 as the denominator. The resulting fraction is 3/16.

Other controls let us specify a vertical offset and a size for the fraction.

The vertical offset adjusts the Y-origin of the fraction text element relative to the prefix text. The offset is expressed as a percentage of the text height.

The size adjusts the scale of the fraction text element relative to the prefix text. The size is expressed as a percentage of the text height.

Text Container

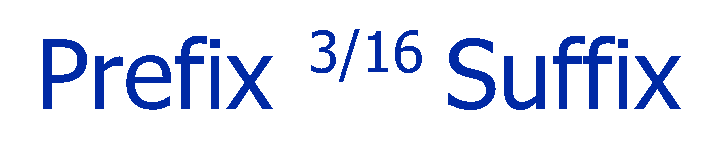

We want to put the DGN text into a DGN container, so that the relative position of each component is fixed. For example, if you subsequently want to perform some operation on the text elements that represent the fraction, you want all those elements to move together. In the screenshot below, there are several text elements in a container …

• The prefix string
• The fraction, composed of …
  • Numerator (3 in this example)
  • Separator symbol (forward-slash / in this example)
  • Denominator (16 in this example)
• The suffix string

MicroStation's idiom for a container is either a cell or a text node. A cell is the most adaptable container, because it can include not only text but also other graphic elements. A text node is a text-only container, and is what MicroStation creates when you use the fraction tool in the text editor.

We couldn't decide which to use, so provide both. The VBA code lets you create either a cell or a text node: the Create Cell and Create Text option buttons let you decide at run-time. The VBA code contains classes clsCreateCell and clsCreateTextNode, so you can invoke your preferred container.

Text Placement

clsTextPlacer is a VBA tool that Implements IPrimitiveCommandEvents. Once started, it lets you place the fraction text interactively. Depending on your choice of cell or text node, it invokes one of classes clsCreateCell or clsCreateTextNode to create a container element.

Class CreateCell

This class is straightforward: it creates a text element for each of the prefix, fraction and suffix strings, and puts them into an array of Element. For each text element, it adjusts the origin and size to create a horizontal layout. It creates a CellElement from that array, which is passed to the placement tool.

Class CreateTextNode

Creation of a TextNodeElement is complicated by VBA's simplistic API. VBA creates a multi-line TextNodeElement (vertically-aligned) list of TextElements. We want to adjust the coordinate and size of each TextElement in the TextNodeElement, to create a horizontal alignment. The TextNodeElement API lets us add text strings to the node, with TextNodeElement.AddTextLine (line As String). It doesn't let us add a TextElement, so we have no opportunity to modify the text origin or size. Instead, we implement a hack …

• Create a temporary TextNodeElement and add our strings to it
• Add the node to the DGN model …
  • Writing the node assigns it an element ID, so we can retrieve it later
  • Writing the node enables us to rewrite its components
• For each text element …
  • Edit its origin and size
  • Rewrite the text element
• Read the modified TextNodeElement using the saved element ID
• For each text element …
  • Edit its text style
  • Rewrite the text element
• Read the modified TextNodeElement using the saved element ID
• Delete the temporary TextNodeElement

You may think that it's odd to read the cloned TextNodeElement twice. I found that when I assign the text style to a component, it resets the component's geometry. By modifying and writing the text styles, then re-reading the temporary text node, we avoid that problem. The text node API is bizarre!

Finally, the edited TextNodeElement is passed to the placement tool

---

Download Example VBA Project

A sample project is available. It includes code similar to that above and the progress form. You can download a ZIP file, and then extract Fraction.mvba to a folder that MicroStation can find. A good place to put it would be ..\Workspace\Standards\macros, or any other folder specified in the MS_VBASEARCHDIRECTORIES configuration variable.

Start the macro with this MicroStation key-in …

vba run [Fractions]modMain.Main
