Questions similar to this appear on the Be Community Forums. This topic was raised in the MicroStation Programming Forum.

Q How do I …

• Analyse a complex element using VBA?
• Analyse a cell element using VBA?

Analyse a Cell Element

A  A MicroStation cell element is a particular form of a MicroStation complex element. It is used to group a set of graphic elements. Those elements usually describe a 3D or 2D construct. See the section about complex elements below.

For information about scanning for cells, read article Scanning a Model for Named Cell using VBA.

Analyse a Complex Element

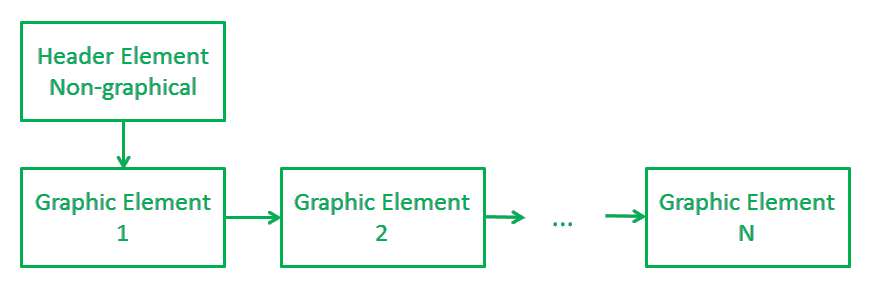

A  MicroStation complex elements have a linked-list data structure.

They are built in MicroStation by internal logic that uses C-style pointers and memory allocation. That model does not lend itself to VBA, which supports neither pointers nor dynamic memory management. Rather, Bentley Systems have written a VBA interface that interprets the underlying linked-list in a way that is compatible with VBA.

ComplexObject Interface

MicroStation VBA provide an interface ComplexObject. VBA element classes that implement ComplexObject include …

• ComplexShapeElement
• ComplexStringElement
• TextNodeElement
• CellElement
• SharedCellElement
• SharedCellDefinitionElement

Each of the above element classes provides methods Drop and GetSubElements. Both return an ElementEnumerator object, which is a collection of elements. See VBA help for details.

See below to find how to use an ElementEnumerator object.

Compound Elements

Some element types, while they might appear complex, do not implement the ComplexObject interface. They include all types of B-spline elements and mesh elements. Their data structures are not implemented as linked lists, and are termed compound elements.

ElementEnumerator class

The ElementEnumerator class is straightforward to use. It enables you to move through the linked-list of component elements in a complex element. Here's an example …

Sub ExamineCell (ByVal oCell As CellElement)
  Dim oComponents As ElementEnumerator
  Set oComponents = oCell.GetSubElements
  Do while oComponents.MoveNext
    Dim oComponent As Element
    Set oComponent = oComponents.Current
    '  Do what you want with oComponent here
  Loop
End Sub

Nested Elements

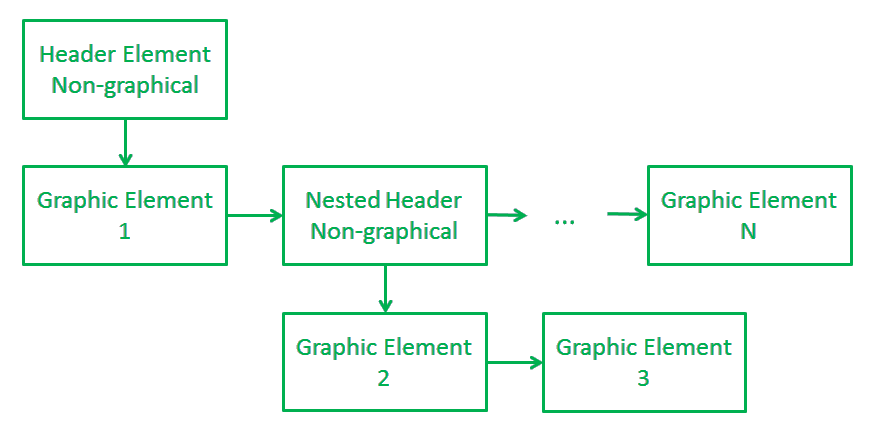

It's not unusual for a complex element to contain another complex element. The contained complex element is nested in the parent complex element.

When analysing nested complex elements, it's common to write recursive code that digs down through the hierarchy. Here's an outline example. Note that the code works with any sort of complex element, not only cells …

Sub ExamineComplexElementRecursively (ByVal oParent As ComplexElement)
  Dim oComponents As ElementEnumerator
  Set oComponents = oParent.GetSubElements
  Do while oComponents.MoveNext
    Dim oComponent As Element
    Set oComponent = oComponents.Current
    If oComponent.IsComplexElement Then
      '  Here's where we get recursive
      ExamineComplexElementRecursively oComponent.AsComplexElement
    Else
      '  Do what you want with graphic element oComponent here
    End If
  Loop
End Sub

Using ExamineComplexElementRecursively

"How do I use ExamineComplexElementRecursively?", I hear you ask. You might have located a complex element by scanning a DGN model, or by asking a user to locate an element. Either way, your code will receive something, such as a cell or a complex shape, that implements the ComplexElement interface. Just call ExamineComplexElementRecursively, passing that object …

Sub YourModelScanMethod ()
  Dim oCell As CellElement
  Set oCell = YourCellScanMethod  ' Get cell from somewhere
  ExamineComplexElementRecursively oCell
  ...
  Dim oShape As ComplexShapeElement
  Set oShape = YourComplexShapeScanMethod ' Get complex shape from somewhere
  ExamineComplexElementRecursively oShape
  ...
  ' And so on
End Sub

Opaque Elements

Some nested elements are not intended for perusal: they are opaque, and we can't see some or all of their contents. An example of an opaque element is a SmartSolid. A SmartSolid is a cell, and contains one or two graphic elements that are used to display the object as a wireframe. The essential information about the 'smartness' of a SmartSolid element is buried inside its boundary representation (BREP) data.
