MicroStation: Environment Expressions

Introduction

This article is for MicroStation CONNECT administrators and users who want to show environment information in a DGN text element. By environment information we mean data external to the DGN file such as …

System Date
System Time
Computer Name
Computer User

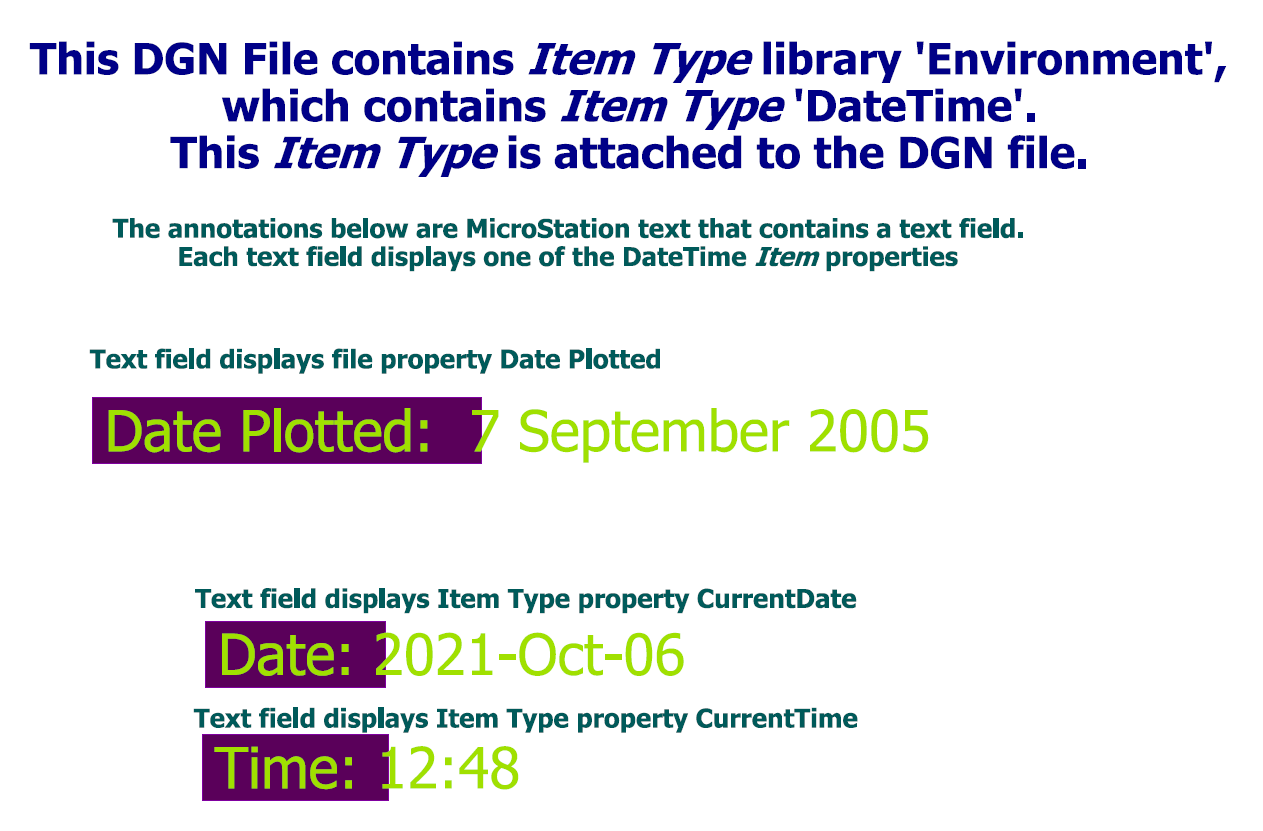

There are probably other environment data that we haven't considered. Here's an example of a DGN model with some text elements that show date and time …

Be Communities

If you want to ask questions about MicroStation CONNECT, post your question to the MicroStation Forum.

MicroStation Technologies

We assemble the solution from several MicroStation CONNECT technologies including …

Expressions
Item Types
Text Fields

Expressions

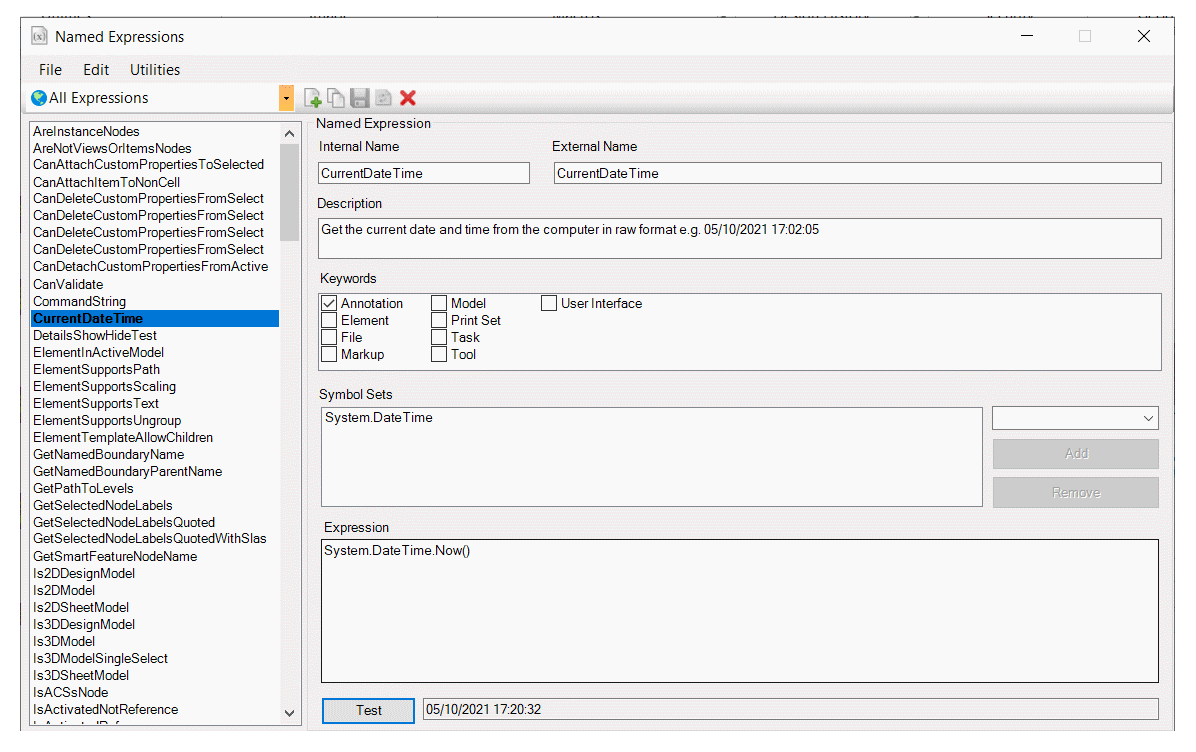

Expressions let us extract information from various sources and perform simple computations on those data. The Named Expressions dialog lets us view, define and test an expression …

For example, we can obtain the current date using System.DateTime.Now(). That date is a date-time value not intended for human consumption …

07/10/2021 12:33:25

Other operations let us manipulate text. For example, we might want to format the date to something more readable using a format string …

System.String.Format ("{0:yyyy-MMM-dd}", System.DateTime.Now())

The result of that computation is easier on the human eye …

2021-Oct-07

We use the Named Expressions dialog to develop and test an expression. We use the expression in an Item Type property definition.

Item Types

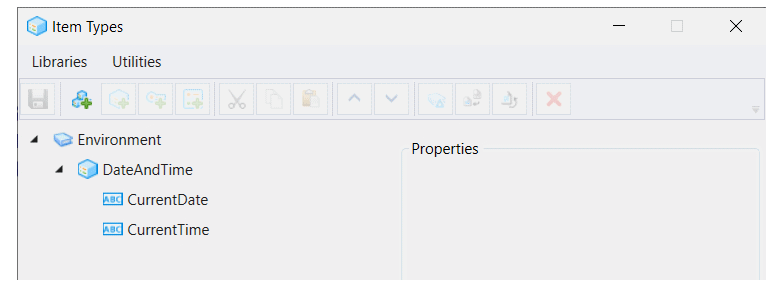

Item Types let us define meta data in an Item Type library. That library can subsequently be used to create an Item instance with named properties. In this solution we create an Item Type library named Environment that contains Item Type DateTime …

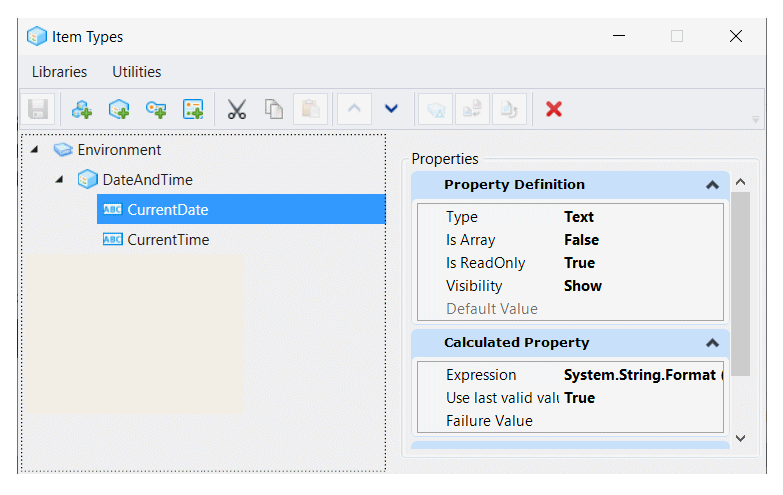

DateTime has properties CurrentDate and CurrentTime. Those properties each contain an expression that obtains the system date or time and formats it as a string.

The Expression in the above dialog is not easy to see. Here it is …

System.String.Format ("{0:yyyy-MMM-dd}", System.DateTime.Now())

Once you've defined an Item Type, you can create an Item instance attached to one of three DGN objects …

Graphic Element
Model
File

Use MicroStation's built-in tool to attach an Item Type to a DGN element. If you want to attach an Item Type to a DGN model or file, use MicroStation Explorer.

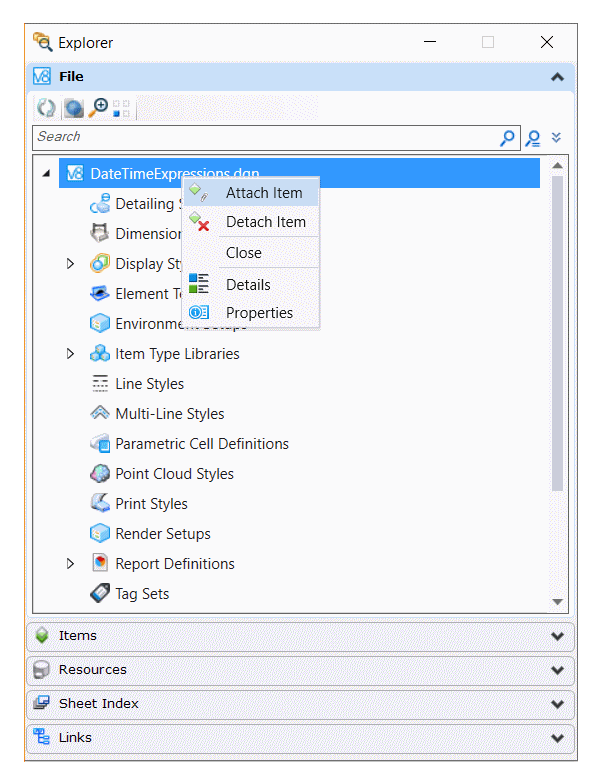

With Explorer open in MicroStation, right-click the active DGN file, and choose Attach Item on the context menu …

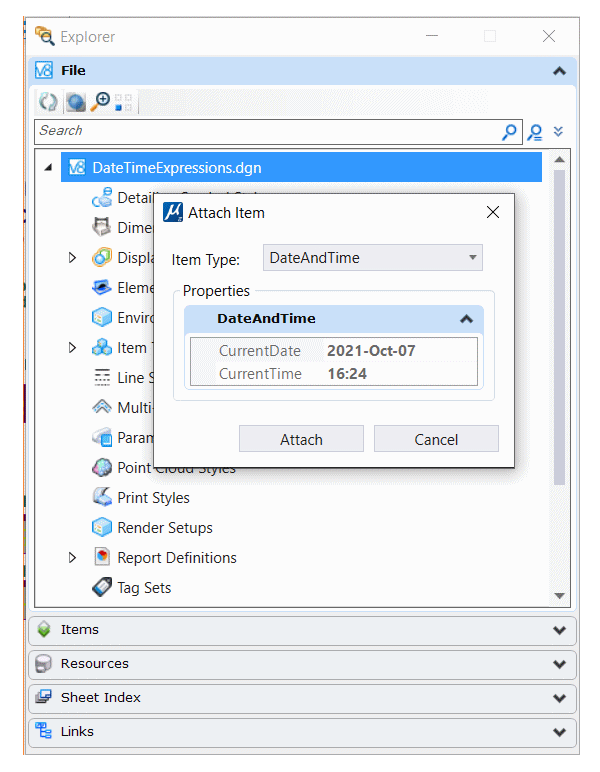

Next, choose the DateAndTime Item Type in the dialog and click Attach …

Text Fields

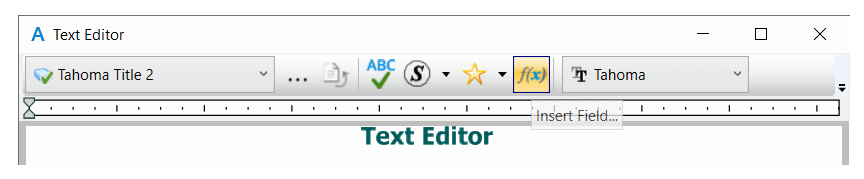

MicroStation Text Fields are created as part of a DGN text element. To create a Text Field, start placing some text, which opens the Text Editor dialog …

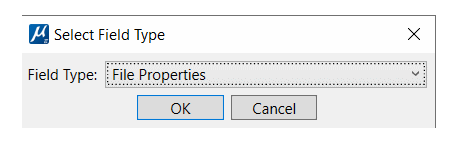

Press the Insert Field button to open the Select Field Type dialog. Choose File Properties …

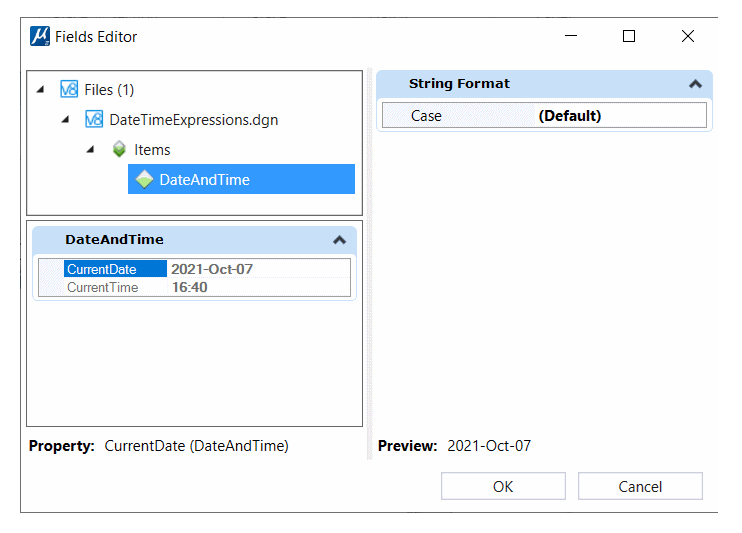

The Fields Editor dialog opens. Because the DateAndTime.CurrentDate and DateAndTime.CurrentTime are Expressions, they are calculated automatically. Those properties are now visible as file properties that you can use in a Text Field …

Putting It All Together

Follow these steps to create a Text Field that displays a property of the DateAndTime Item Type …

Start to place some text, which opens the Text Editor
With the Text Editor open, click the Insert Text Field button
The Select Field dialog opens
Choose the File Properties option
Click OK
The Fields Editor dialog opens
Click on the CurrentDate or CurrentTime property
Click OK

Installation

You can install this solution in one of several ways …

Make the DGN file that contains the Item Type definition your seed file
- Each time you create a new DGN file from that seed, the Item Type definition is included and the DGN file retains the instance attachment
Make the DGN file a design library (DGNLib)
- The Item Type definition is automatically available
- You must attach the Item Type to the DGN file as described above

Whichever you choose, you can subsequently create a text field that references the required Item Type property.

Download the Date Time Expressions Example DGN File

You can download the Date Time Expressions DGN file. The DGN file was created using MicroStation CONNECT Update 16. It should work with versions of MicroStation CONNECT from Update 12.
