This page lists some solutions to common MicroStation VBA (MVBA) problems. Tips are published as examples and are not necessarily working code.
Place Line with Terminator
The Place Line with Terminator tool was developed in response to a request by a MicroStation user in the MicroStation Forum.

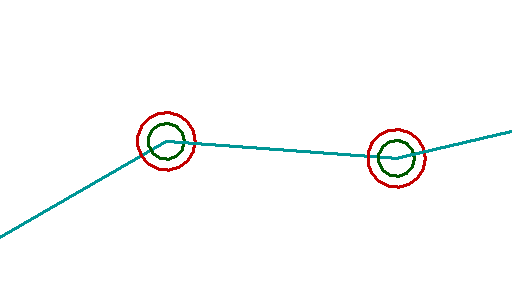

The purpose of the tool is to let a user place a set of lines, where each line has a terminator cell placed coincident with its end point …
The Place Line with Terminator tool should work in a 2D or 3D DGN model. I developed it using MicroStation 2024. It should work also in MicroStation V8i or MicroStation CONNECT.
Dialog

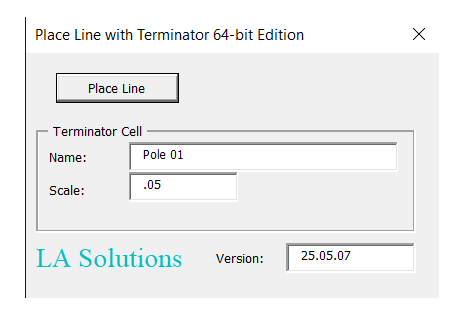

When you first run the macro using the key-in below, it pops the Place Line with Terminator dialog.
The Terminator Settings group shows the name of the terminator cell and the desired scale used for placement. The macro assumes that you have set the active cell library and a cell in that library designated the terminator cell. See MicroStation help about the Cell Library Dialog, where you'll find a section about specifying the terminator cell.
Place Line with Terminator Key-Ins
Load the VBA project using key-in
vba run [PlaceLineWithTerminator]modMain.main
You don't need to know anything about VBA to use our tool. If you're not interested in the description of the VBA code that follows, then skip to the download section.
Place Line with Terminator Tool: VBA Code Overview
The macro has threee VBA modules …
Module modMain | Contains the Main entry point and some standard code and data |
Class clsLineCreator | Implements IPrimitiveCommandEvents as the line placement tool |
UserForm frmPlaceLineWithTerminator | User interface for this macro |
Click the Place Line button to start.
The button create a class that Implements IPrimitiveCommandEvents.
As you place data points the class accumulates the points in a dynamic array along with the point count.
The class display your progress by creating a temporary line-string in the _Dynamics event.
When you click the Reset button,
the macro creates a LineElement and adds the terminator cell at each vertex.
Download the Place Line with Terminator Tool
You can download the PlaceLineWithTerminator MVBA project.
The project includes the MVBA project PlaceLineWithTerminator.mvba.
- Unpack the ZIP archive to a suitable location, such as
..\Organization\Workspace\Standards\macros - Start the tool with the MicroStation keyin
vba run [PlaceLineWithTerminator]modMain.main - The tool prompts for the first datapoint
