This article answers two questions about MicroStation view capture. MicroStation has up to eight visible views of a CAD model. You can capture any view as a raster image, in variety of formats (i.e. JPEG, BMP, etc.) …

• Capture a view manually
• Capture a view programmatically with VBA
• Capture an image of a single element programmatically with VBA

Q How do I capture the contents of a MicroStation view as an image?

A The CAPTURE VIEW command does exactly what you want. It lets you save a view's contents to a raster file. You can start the command from MicroStation's Utilities|Image menu …

Alternatively, you can provide a manual keyin. It's always worth taking the time to understand MicroStation's keyin commands, because you can attach them to function keys, your own icons, or use them in VBA macros. To use the CAPTURE VIEW command, follow these steps …

• Keyin the command CAPTURE VIEW
• Click the mouse in the view you want to capture
• Alternatively, you can concatenate the previous two steps into a single keyin:
  CAPTURE VIEW;SELVIEW 1 (assuming you want to capture view 1)
• Capture commands are also available from the Utilities|Image menu

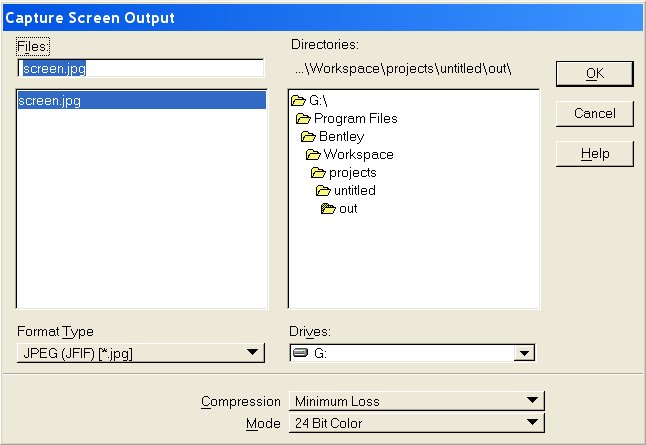

• The Capture Screen Output dialog opens
• Specify an image file name and location

Q How can I automate screen capture using VBA?

A I wrote a simple VBA subroutine CaptureView. Subroutine CaptureView starts the CAPTURE VIEW command. It also sets the image file path and file name in the Capture Screen Output dialog and closes the dialog automatically. That is, you don't have a modal dialog hanging around.

In this example, Subroutine Main specifies the view number and file name to be used. If you want to automate screen capture in a batch file, you would make a similar call after opening each design file. You could also use VBA's CommandKeyin property to let your user pass the file name on the command line (e.g. vba run CaptureView.Main <file spec.>).

Option Explicit
' ---------------------------------------------------------------------
'   CaptureView illustrates how to automate MicroStation view capture
'   using VBA
' ---------------------------------------------------------------------
'   Notice:
'   Sample code provided by LA Solutions Ltd.
'   This code is supplied with no claim for fitness for
'   purpose and is not supported.  You may freely copy this code
'   provided this notice is retained in full.
' ---------------------------------------------------------------------
'   For more VBA tips visit our web site
'   http://www.la-solutions.co.uk/content/Publications.htm
' ---------------------------------------------------------------------
'   This module references a class module CaptureScreenModalHandler
'   that Implements IModalDialogEvents
' ---------------------------------------------------------------------
'   MicroStation keyin:
'   vba run CaptureView.Main
' ---------------------------------------------------------------------

Sub Main()
    '  I've hard-coded the view number and file name here
    '  to illustrate the call syntax
    CaptureView 1, "D:\temp\msview1.jpg"
End Sub

' ---------------------------------------------------------------------
'   CaptureView automates the process of the CAPTURE VIEW command
' ---------------------------------------------------------------------
Sub CaptureView(viewNum As Integer, fileSpec As String)
'   Send a keyin that can be a command string
    CadInputQueue.SendKeyin "null"

    Dim modalHandler As New CaptureScreenModalHandler
    AddModalDialogEventsHandler modalHandler
    modalHandler.FilePath = fileSpec
'   The following statement opens modal dialog "Capture Screen Output"
    CadInputQueue.SendKeyin "capture view"
    CadInputQueue.SendKeyin "selview " & CStr(viewNum)

    RemoveModalDialogEventsHandler modalHandler
    CommandState.StartDefaultCommand
End Sub

The code that handles the modal Capture Screen Output dialog is in a class CaptureScreenModalHandler that Implements IModalDialogEvents. The class has a FilePath property that provides the file name and file path information for the dialog's internal data.

Option Explicit
' ---------------------------------------------------------------------
'   CaptureView illustrates how to automate MicroStation view capture
'   using VBA
' ---------------------------------------------------------------------
'   Notice:
'   Sample code provided by LA Solutions Ltd.
'   This code is supplied with no claim for fitness for
'   purpose and is not supported.  You may freely copy this code
'   provided this notice is retained in full.
' ---------------------------------------------------------------------
'   For more VBA tips visit our web site
'   http://www.la-solutions.co.uk/content/Publications.htm
' ---------------------------------------------------------------------
'   This class handles MicroStation's 'Capture Screen Output' dialog
'   and is used by the subroutine CaptureView in module CaptureView
' ---------------------------------------------------------------------
Private m_strFilePath As String

Implements IModalDialogEvents
' ---------------------------------------------------------------------
'   Dialog Closed event handler does nothing
' ---------------------------------------------------------------------
Private Sub IModalDialogEvents_OnDialogClosed(ByVal DialogBoxName As String, ByVal DialogResult As MsdDialogBoxResult)

End Sub
' ---------------------------------------------------------------------
'   FilePath Property
' ---------------------------------------------------------------------
Public Property Let FilePath(s As String)
    m_strFilePath = s
End Property
' ---------------------------------------------------------------------
'   Dialog Opened event handler
' ---------------------------------------------------------------------
Private Sub IModalDialogEvents_OnDialogOpened(ByVal DialogBoxName As String, DialogResult As MsdDialogBoxResult)

    If DialogBoxName = "Capture Screen Output" Then

    Const Separator     As String = "\"
    Dim path            As String, _
        file            As String
    Dim pos             As Integer

    '   Split file specification into name and path
    pos = InStrRev(m_strFilePath, Separator)
    If (0 < pos) Then
        path = Left(m_strFilePath, pos)
        file = Mid(m_strFilePath, pos + 1)
    End If
    '   Start a command
        CadInputQueue.SendCommand "MDL COMMAND MGDSHOOK,fileList_setFilterCmd *.jpg"

        CadInputQueue.SendCommand "MDL COMMAND MGDSHOOK,fileList_setDirectoryCmd " & path

        CadInputQueue.SendCommand "MDL COMMAND MGDSHOOK,fileList_setFileNameCmd " & file

    '   Remove the following line to let the user close the dialog box.
        DialogResult = msdDialogBoxResultOK

    End If  ' Capture Screen Output
End Sub

The source code above is available in a ZIP archive CaptureView.zip. Use the VBA editor's Import command to import the modules into your project.

Q How do I capture an image of a graphic element?

A Use the Element.GetPicture method in VBA, or Element.DrawToEnhancedMetafile if using a .NET language.

Search MicroStation VBA help for an example of Element.GetPicture.
